- Key Features
- Body Material: Single-piece forged Brass Body (CW 617 N)
- Ball Material: Engineered PPSU polymer ball
- Seal: Silicone seal ring for tight shut-off
- Handle & Rosette: CP brass, corrosion-resistant chrome-plated finish
- Threading: BSP Female thread ends
- Temperature Range: 0°C to 100°C
- Pressure Rating: PN 10
- Anti-Jamming: Performs flawlessly even if not operated for long periods

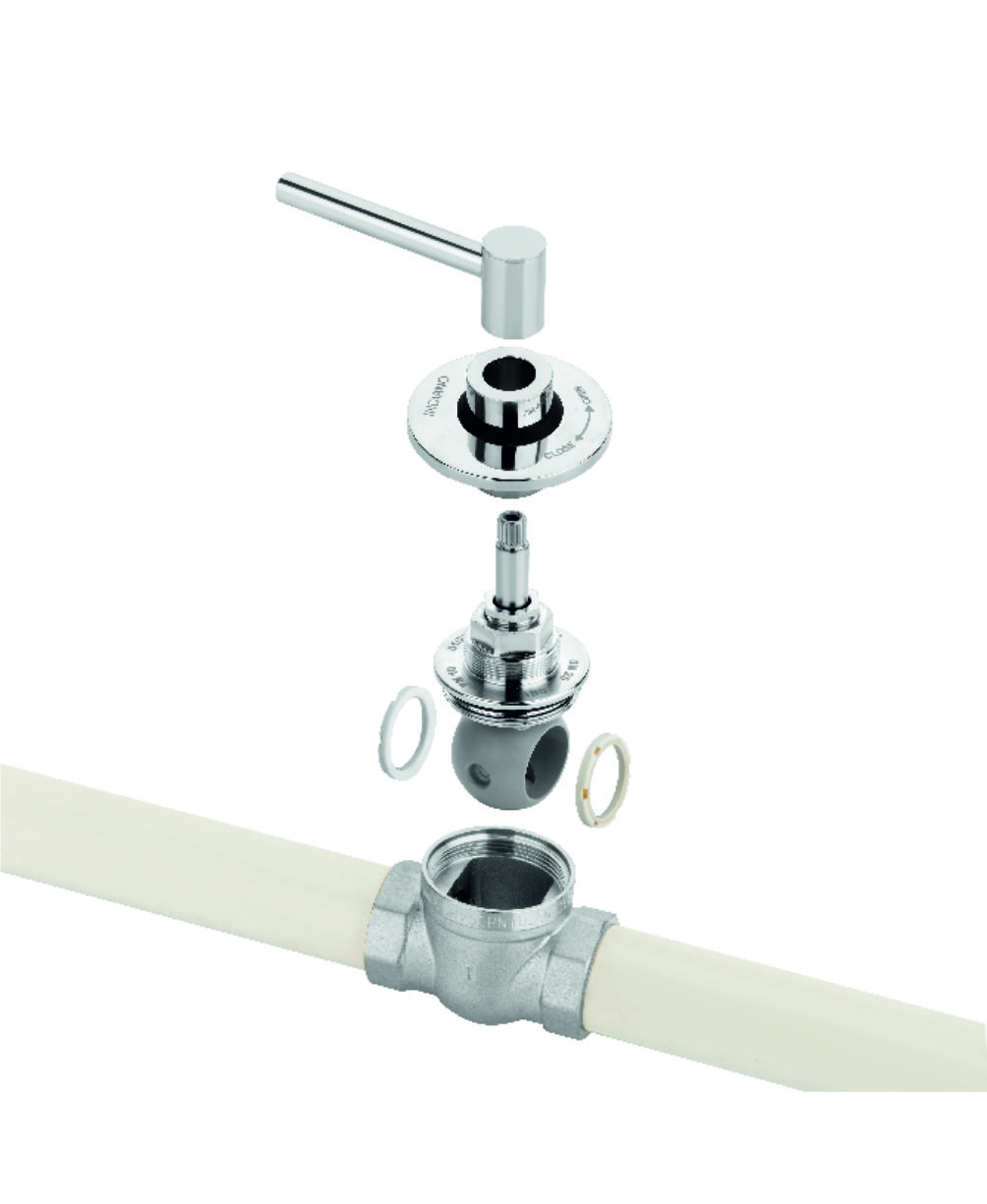

- Repair-Friendly: Spare parts available; easy to maintain without pipe cutting
- Soft Operating: Smooth 90° turn functionality
- Why PPSU Advanced Polymer Ball?
- No effect of water humidity (hydrolytically stable)
- High pressure and temperature resistance (up to 200°C)
- 100% chemical resistance – ideal for hard water and TDS
- Durability unmatched – long operational life with zero scaling or corrosion
- Applications
- To shut off individual bathroom main line.
- Bathroom concealed water supply line (hot & cold)
- High-end bathroom installations requiring aesthetic finish
- Ideal for use in hard water areas
- Advantages
- 100% anti-jamming performance – even after prolonged non-use
- PPSU ball offers zero corrosion or scale buildup
- Easy maintenance with interchangeable spares
- Chrome-finished handle enhances appearance in concealed fittings
- Ensures full flow and effortless operation
- Flow Characteristics

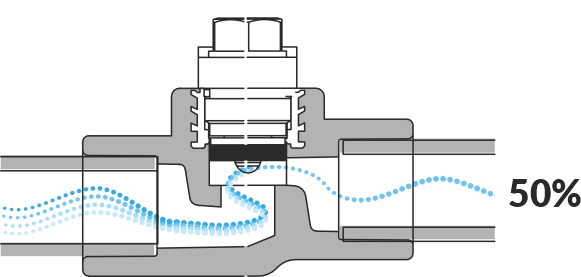

- Ordinary Concealed Stop Cocks Reduce Water Flow.
Traditional concealed stop cocks use a restricted internal passage design.
As water passes through the narrow flow path, pressure and volume reduce significantly especially noticeable in showers, health faucets, and overhead fittings.
Restricted Flow Path
Up to 50% Flow Reduction
- Result
- Reduced water pressure
- Slower water flow
- Poor bathroom experience

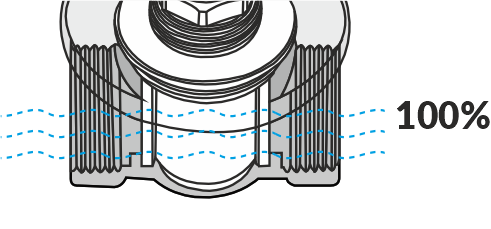

- INDIANO’s Control Valve – 100% Full Bore Flow
Our Control Valve is engineered with a Ball Mechanism Design that provides a Full-Bore Water Passage.
This allows water to flow freely without obstruction, maintaining near-original line pressure inside the bathroom.
- Key Benefits
- 100% Full Flow Design
- No Pressure Drop in Individual Bathroom
- Smooth & Uninterrupted Water Supply
- Better Shower Performance
- Easy Isolation During Maintenance
- Anti-Jamming PPSU Ball Technology
- Long Life & Smooth Operation
- Size Specifications
| Code | Size | DN | L | M | H | SW | D1 | Pack Pcs |
|---|---|---|---|---|---|---|---|---|
| 3222050 | 1/2" | 15 | 54 | 75 | 90 | 25 | 73 | 45 |
| 3222075 | 3/4" | 20 | 61 | 75 | 94 | 30 | 73 | 45 |
| 3222100 | 1" | 25 | 70 | 75 | 100 | 38 | 73 | 36 |
| 3222125 | 1.1/4" | 32 | 80 | 75 | 103 | 46 | 94 | 27 |
| 3222150 | 1.1/2" | 40 | 92 | 75 | 107 | 53 | 122 | 18 |
