- Key Features
- Valve Body: One-piece forged brass (CW 617 N)
- Ball Material: PPSU polymer (Polyphenylsulfone) – corrosion-free, scale-resistant
- Seal Material: Virgin PTFE seal ring
- Handle: Powder-coated aluminum.
- Thread Type: BSP Female (ISO 228 compliant)
- Pressure Rating: PN 25
- Temperature Range: 0°C to 100°C
- Operation: Soft-turn 90° operation

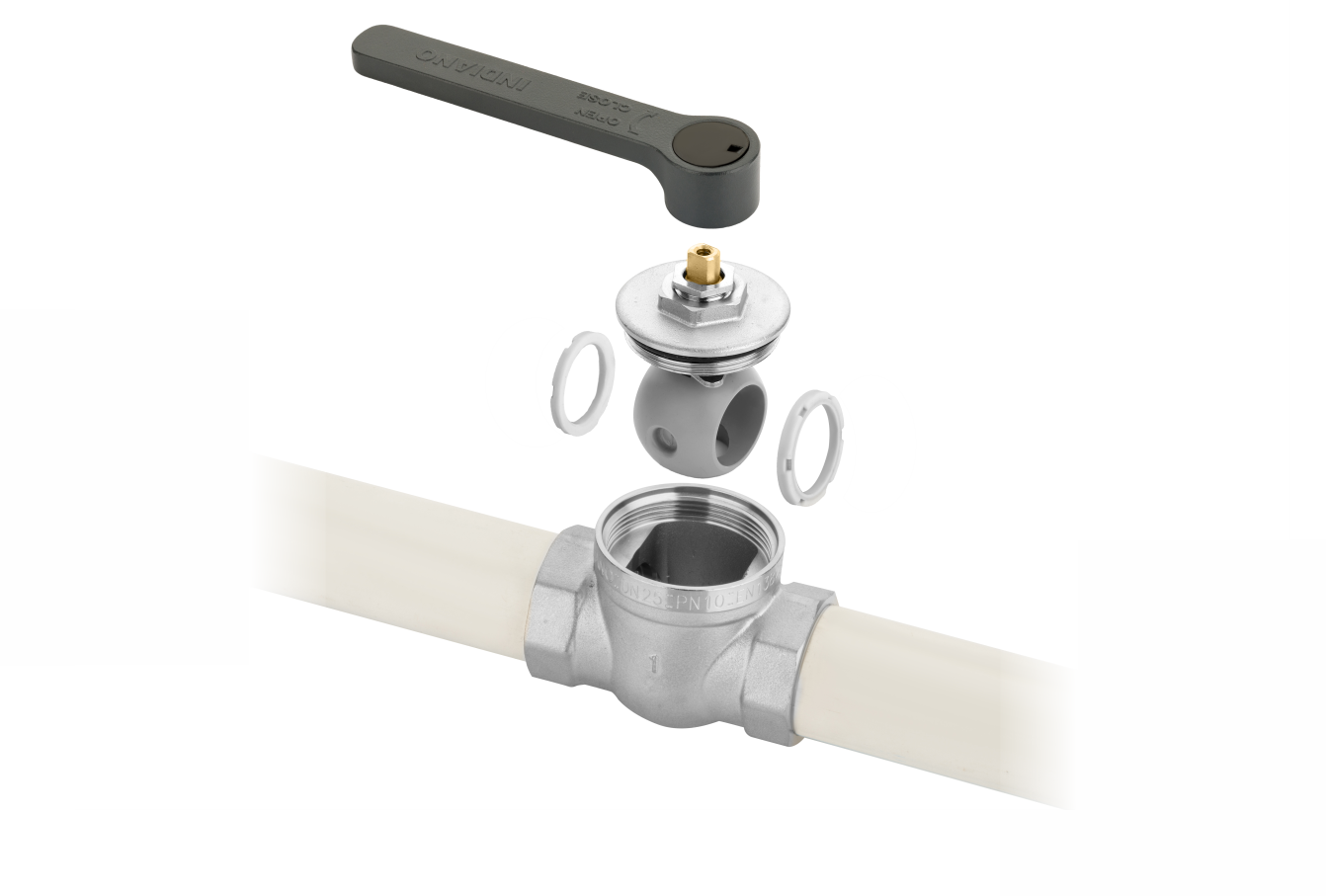

- Serviceability: Fully repairable; spares available – no pipe cutting required
- Anti-Jamming: Designed to stay operational even after long periods of inactivity
- Applications
- Main line water shut-off valves
- Ideal for hard water areas and high TDS zones
- Hot and cold water systems
- Residential, commercial, and industrial plumbing
- Suitable for installations where valves are prone to jamming due to long periods of inactivity.
- Benefits of Our Innovation
- Corrosion Resistant –Ideal for Indian water conditions
- Hydrolytic Stability – Performs well in humid & wet environments
- High Heat Resistance – Survives temperature up to 200°C
- No Scale Buildup – Valve works when required
- Better Value Over Time – Though initially costlier, the long lifespan lowers total cost of ownership
- Conclusion

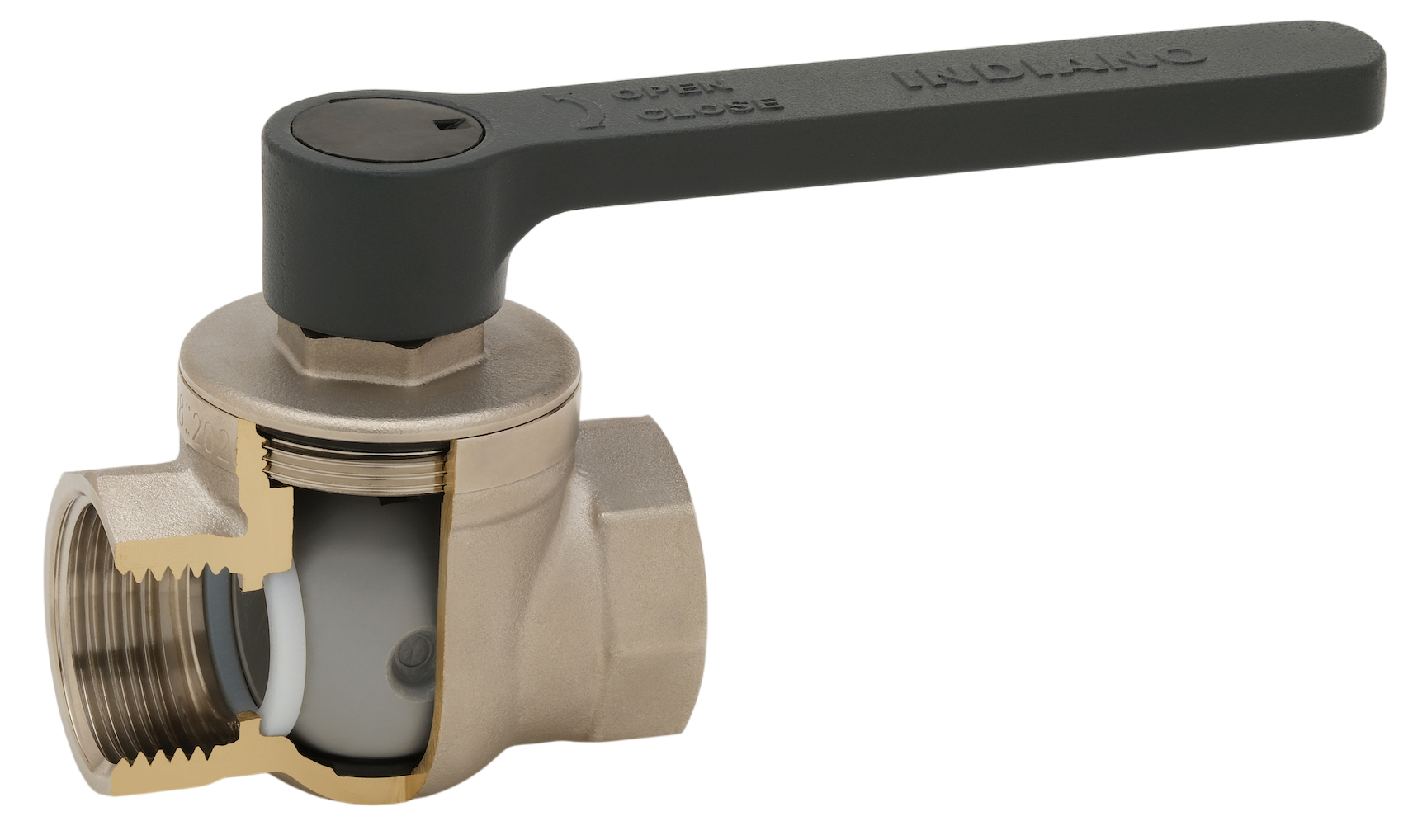

- Traditional metal ball valves often jam due to hard water scaling and lime deposits. Our specially designed PPSU polymer ball resists scale formation and ensures smooth 90° operation even after long periods of inactivity
- While the initial cost of the Top Entry Ball Valve is slightly higher, the lifetime cost savings are significant. Customers actually save more money long-term with Top Entry Ball Valves.

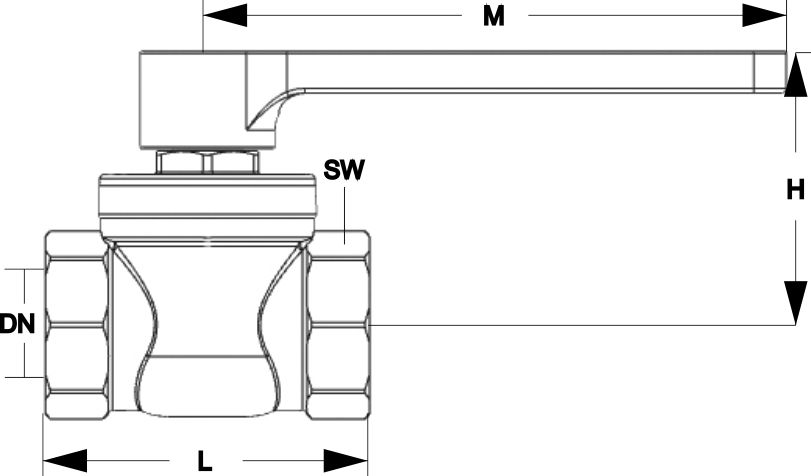

- Size Specification
| Code | Size | DN | L | M | H | SW | Pack Pcs |
|---|---|---|---|---|---|---|---|
| T 222 050 | 1/2" | 15 | 54 | 90 | 53 | 25 | 80 |
| T 222 075 | 3/4" | 20 | 61 | 90 | 56 | 30 | 60 |
| T 222 100 | 1" | 25 | 70 | 125 | 60 | 38 | 40 |
| T 222 125 | 1.1/4" | 32 | 80 | 125 | 65 | 46 | 24 |
| T 222 150 | 1.1/2" | 40 | 92 | 150 | 80 | 53 | 16 |
